Trinkwasserproduktionslinie

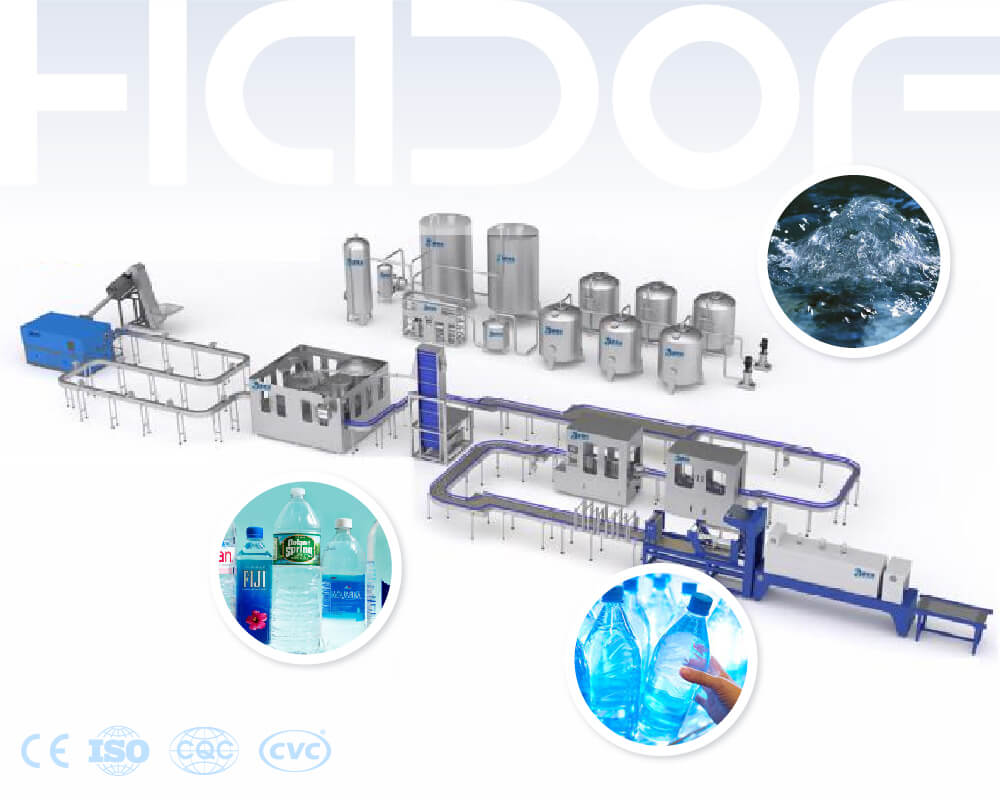

Unsere Trinkwasserproduktionslinie ist ein fortschrittliches automatisiertes System, das den gesamten Produktionsprozess abdeckt, aus Wasseraufbereitung, Filtration, und Mineralisierung, zu füllen, Capping, Beschriftung, und Verpackung. Entwickelt für hohe Effizienz und Flexibilität, Es unterstützt verschiedene Flaschengrößen und Typen. Das System gewährleistet die höchste Wasserqualitäts- und Hygiene-Standards und senkt gleichzeitig die Produktionskosten. Mit modernster Technologie, Diese Linie ist ideal für kleine und groß angelegte Operationen, Erfüllung der internationalen Vorschriften für Lebensmittelsicherheit und Umwelt für eine nachhaltige und zuverlässige Wasserproduktion.

Kapazität:2000-42000 bottles/hour
Bottle capacity Range: 200ml – 2000ml
Bottle Type Support: PET -Flaschen, Glasflaschen, aluminum cans
Sterilization Method: Pasteurization/UHT
Equipment Material：SUS304/316 food grade stainless steel
Applicable beverage types: Water, Tea Drinks, Juice, Functional Drinks, Soda, usw.

Tel: +86 371-86582811
Mob & Whatsapp: +86 15239453015
E-Mail: info@hadofmaachinery.com

Norway Timelapse

main image-8

Main image-1

Main image-2

Main image-3

Main image-4

Main image-5

Main image-6

Main image-7

Product Parameters

Kapazität	2000-42000 bottles/hour	Equipment power	80-150kW (depending on production line configuration)
Bottle type support	PET -Flaschen, Glasflaschen, aluminum cans	Equipment material	SUS304/316 food grade stainless steel
Bottle capacity range	200ml – 2000ml	Filling accuracy	±1%
Applicable beverage types	Purified water, mineral water, soda water，sparkling water, functional beverages	Control system	PLC automatic control, touch screen operation
Sterilization method	Pasteurization/UHT	Production line length	15m – 30m
Filling method	Hot filling/Aseptic filling	Packaging type	Carton packaging, plastic packaging

Water Treatment System
preparation
Blowing Bottle
Filling
Labeling
Packaging
Palletizing

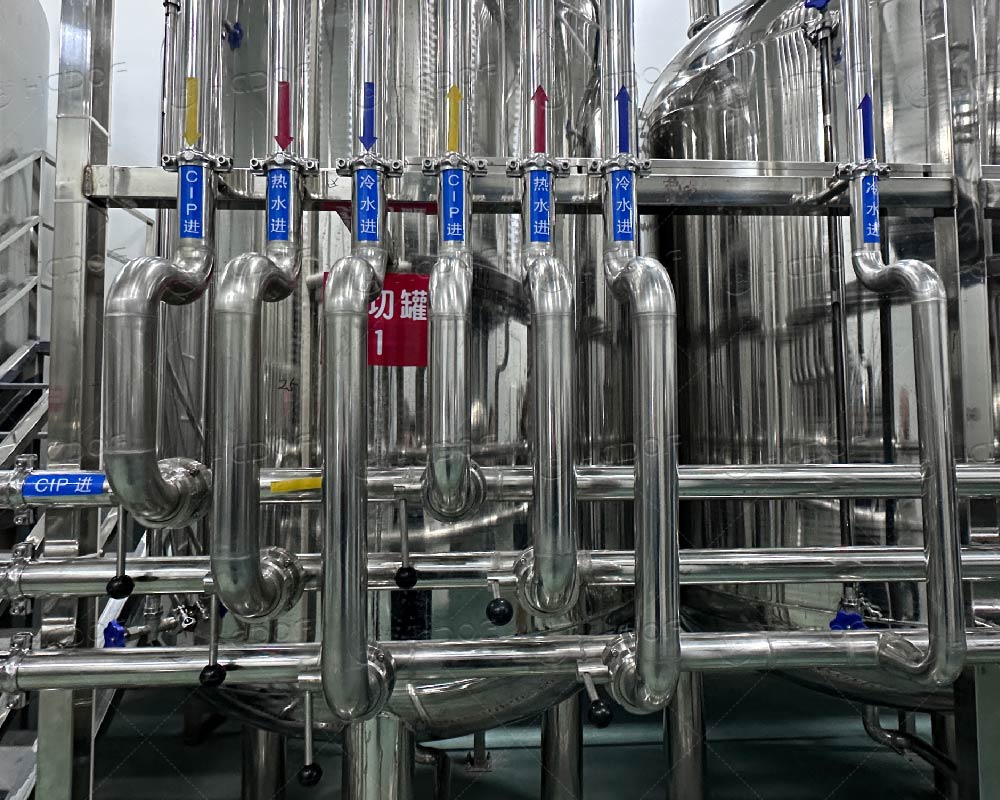

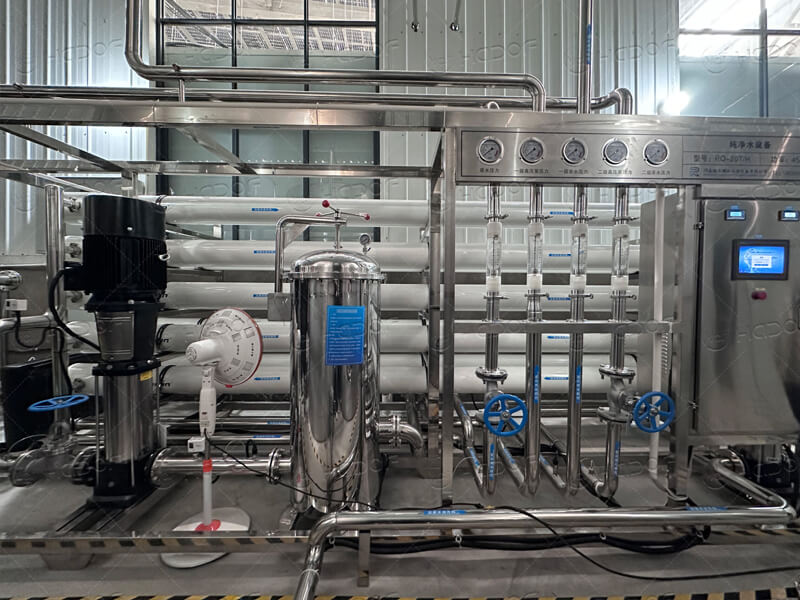

Water Treatment System
It can remove impurities, reduce organic matter content, remove residual chlorine, kill and remove microorganisms, and adjust water quality components to ensure the clarity, taste, safety of drinking water and retain beneficial minerals.

Fully Automatic Bottle Blowing Machine
The preform is heated and softened, and then blown into shape using high-pressure air to ensure bottle quality; the bottle output can reach 2500BPH-6000BPH, fully meeting customer needs.

XGF Bottled Drinking Water Filling Line
The production line covers a complete and coherent series of process flows from empty bottle conveying, cleaning, filling to capping, with an output of 8000BPH-48000BPH.

Sleeve Labeling Machine / Labeling Machine
Sleeve Labeling Machine ：The labels are cut and formed into cylindrical labels and then put on the bottles at high speed to meet large-scale production.
labeling Machine：It adopts local glue application method, with small glue consumption, low operating cost, and production capacity up to 30,000 BPH

Fully Automatic Film Wrapping Machine
Equipped with a touch screen operation panel, adapted to different product sizes and packaging requirements, to achieve efficient packaging

Palletizer:
The palletizer can control the stacking process more accurately, avoiding material waste caused by irregular or damaged stacking, effectively improving production efficiency and reducing labor costs. It is a key equipment to ensure safety and product quality.
